GFEVT1500-59ES高速熔斷器100A-630A 1500Vdc

[附件: Download]

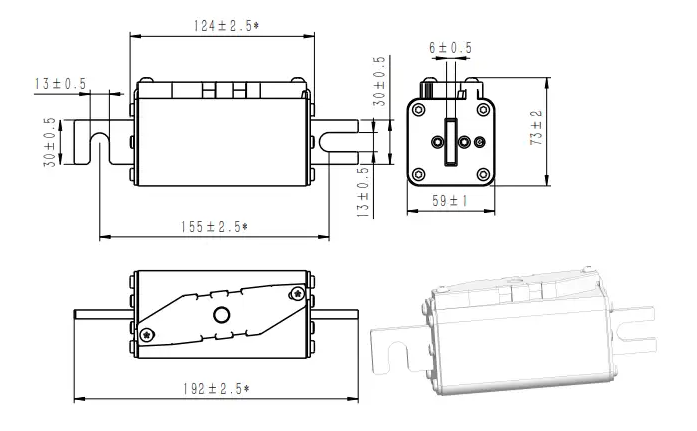

Dimensions (mm)

Bolted xxxB-59ES Dimensions

Din xxxU-59ES Dimensions

Customize xxxK-59ES Dimensions

Description

Design For DC Applications
Excellent DC Performance
Superior Cycling Capability
Low Watt Losses

Standards / Approvals

Refer To UL 248.1 / UL 248.13
IEC 60269.1 / IEC 60269.4
Reach Declaration Available Upon Request
UL, TUV
RoHS Compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
Greater ampacity within sizing guidelines.
Excellent power of resisting voltaic impingement and environmental temperature tolerance.
Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Average @50KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS
Bolted	GFEVT1500-100B-59ES	100A	2370	8857	41	53	●
	GFEVT1500-125B-59ES	125A	4890	13219	47	60	●
	GFEVT1500-160B-59ES	160A	7192	19440	50	64	●
	GFEVT1500-200B-59ES	200A	11066	29907	68	86	●
	GFEVT1500-250B-59ES	250A	17940	48480	86	107	●
	GFEVT1500-315B-59ES	315A	30568	82610	102	127	●
	GFEVT1500-350B-59ES	350A	40655	109878	109	136	●
	GFEVT1500-400B-59ES	400A	58496	158090	121	151	●
	GFEVT1500-450B-59ES	450A	78890	213215	128	161	○
	GFEVT1500-500B-59ES	500A	101503	274330	139	174	○
	GFEVT1500-550B-59ES	550A	125982	340490	155	194	○
	GFEVT1500-630B-59ES	630A	185020	500100	162	203	○

Connect	Part No.	Fuse Amps	Average @50KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS
Din	GFEVT1500-100U-59ES	100A	2370	8857	41	53	●
	GFEVT1500-125U-59ES	125A	4890	13219	47	60	●
	GFEVT1500-160U-59ES	160A	7192	19440	50	64	●
	GFEVT1500-200U-59ES	200A	11066	29907	68	86	●
	GFEVT1500-250U-59ES	250A	17940	48480	86	107	●
	GFEVT1500-315U-59ES	315A	30568	82610	102	127	●
	GFEVT1500-350U-59ES	350A	40655	109878	109	136	●
	GFEVT1500-400U-59ES	400A	58496	158090	121	151	●
	GFEVT1500-450U-59ES	450A	78890	213215	128	161	○
	GFEVT1500-500U-59ES	500A	101503	274330	139	174	○
	GFEVT1500-550U-59ES	550A	125982	340490	155	194	○
	GFEVT1500-630U-59ES	630A	185020	500100	162	203	○

Connect	Part No.	Fuse Amps	Average @50KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS
Customize	GFEVT1500-100K-59ES	100A	2370	8857	41	53	●
	GFEVT1500-125K-59ES	125A	4890	13219	47	60	●
	GFEVT1500-160K-59ES	160A	7192	19440	50	64	●
	GFEVT1500-200K-59ES	200A	11066	29907	68	86	●
	GFEVT1500-250K-59ES	250A	17940	48480	86	107	●
	GFEVT1500-315K-59ES	315A	30568	82610	102	127	●
	GFEVT1500-350K-59ES	350A	40655	109878	109	136	●
	GFEVT1500-400K-59ES	400A	58496	158090	121	151	●
	GFEVT1500-450K-59ES	450A	78890	213215	128	161	○
	GFEVT1500-500K-59ES	500A	101503	274330	139	174	○
	GFEVT1500-550K-59ES	550A	125982	340490	155	194	○
	GFEVT1500-630K-59ES	630A	185020	500100	162	203	○
